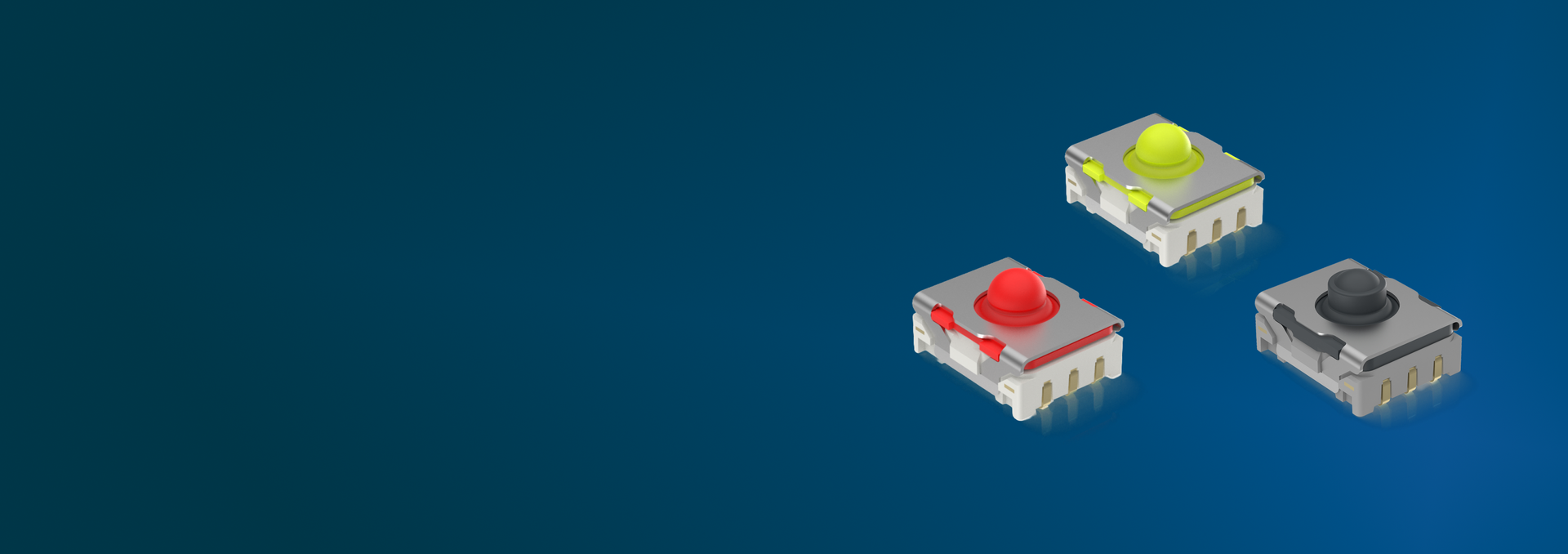

The tactile switches of the MICON 5 series are available in the variants MICON 5 S, MICON 5 SL and MICON 5 SAFETY. All three variants impress with exceptional tactile feedback.
Product video
Thanks to the higher IP 67 degree of protection, MICON 5 S (Sealed) tactile switches can be installed on PCBs protected against environmental influences by casting, painting, or nanocoating. In combination with the extensive range of accessories, the MICON 5 S is a universal solution for almost all applications. Various lengths, forms, and illumination options are available.
The new MICON 5 SL series is the answer to applications in which the tactile
switches are actuated frequently. With a operating life of up to ten million
actuation cycles, the MICON 5 SL (Sealed & extended Lifetime) is ideal for use in
joysticks or other operating devices that are subject to particularly high stresses.
The SL variants are available in SMT and with two different actuation forces.

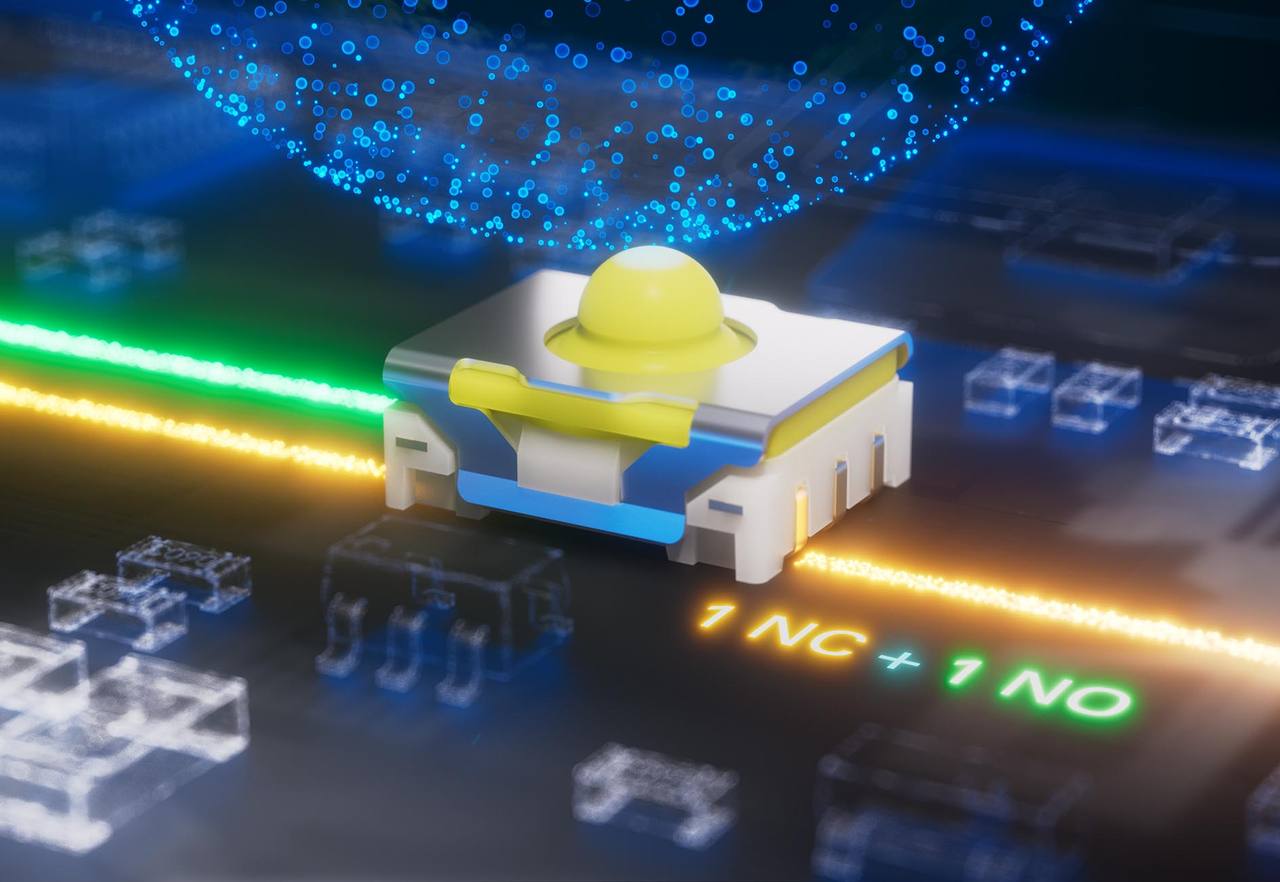

On the smallest possible area, the MICON 5 SAFETY not only integrates the exceptional qualities of the MICON 5 S, but also features two potential-free, separate NC and NO contacts. This makes it unique in this size worldwide.
Its properties enable especially cost-effective and space-saving design for applications developed to industry-specific functional safety standards – for example:
IEC 61508 Functional safety
IEC 62061 Safety of machinery
IEC 60601 Medical equipment
ISO 26262 Road vehicles
DIN EN 50128 Railway
DIN EN ISO 13849 Industrial automation
DIN EN ISO 25119 Agriculture and forestry
