MULTI-TOUCH-PANEL

FOR UNRIVALLED PERFORMANCE IN THE FIELD
  1. Home
  2. Ι INDUSTRIES
  3. Ι AUTOMATION & ROBOTICS

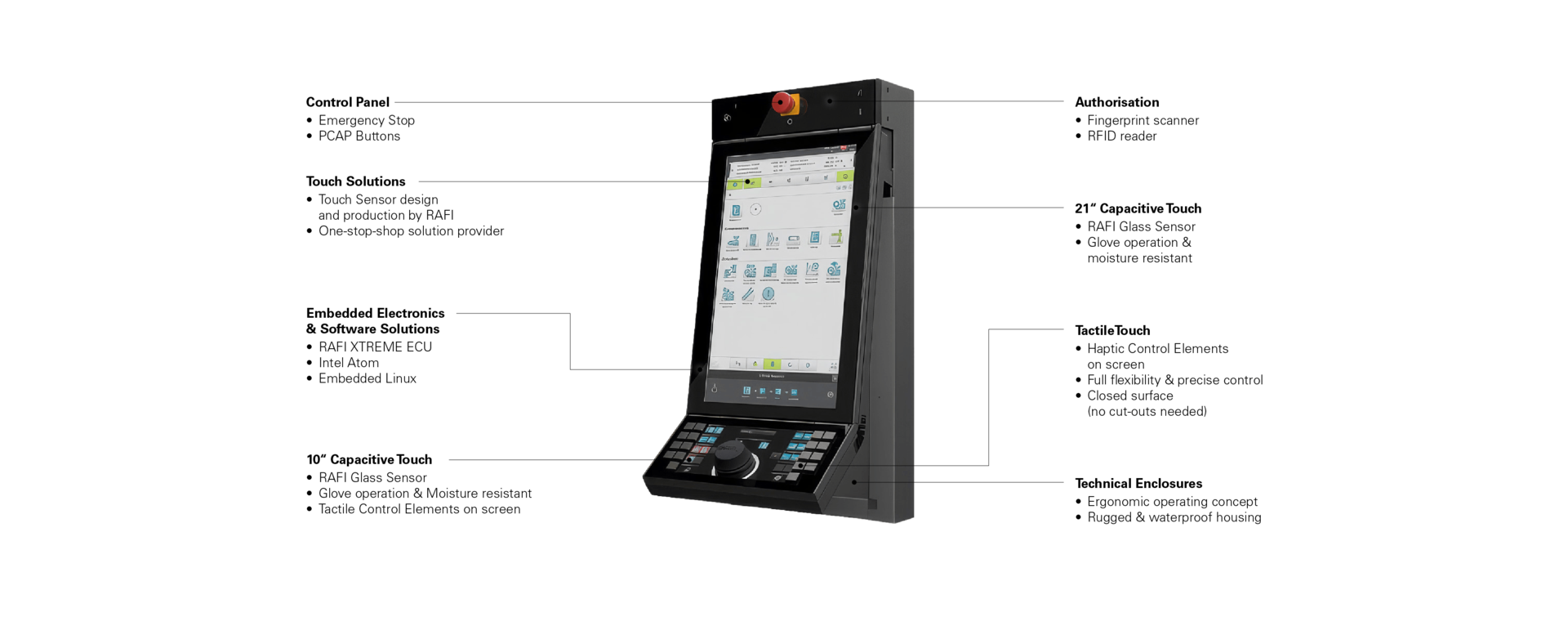

The CC300 plus is next-generation HMI control system for injection molding machines, with a strong focus on ergonomics, customization, haptic operation, and modern access technologies.

  • Product: Multi-Touch Panel
  • Industry: Mechanical engineering
  • Function: Control system for injection molding machines

PROJECT SCOPE

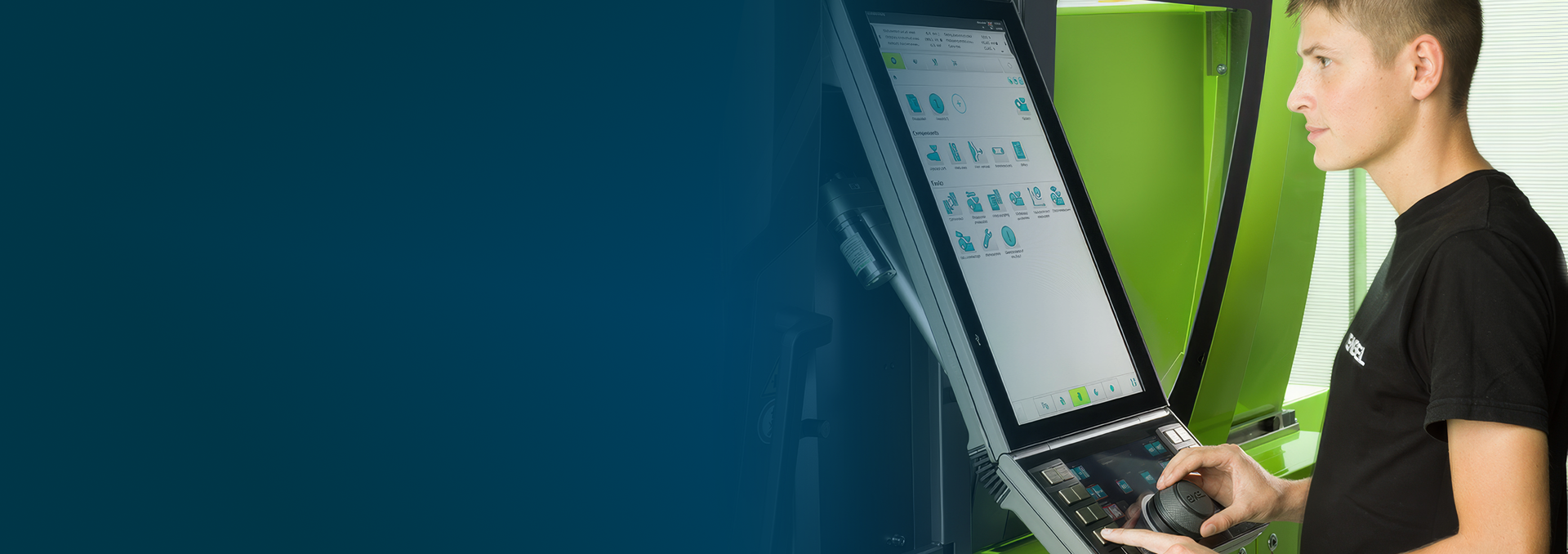

The HMI control system was designed in collaboration with RAFI to meet the growing demands for ergonomics, process reliability, and operating comfort in modern injection molding.

The operating concept is based on a three-part panel design consisting of a power-on panel, a visualization panel, and the newly developed handheld control panel. The latter represents the key innovation: haptic button pairs that can be individually programmed enable precise, reliable, and intuitive machine operation, particularly during frequent setup procedures and manual adjustment tasks.

The large multitouch display supports smooth navigation and allows for simultaneous operations, which accelerates workflows and reduces errors. This is complemented by modern access technologies such as RFID login in accordance with the EUROMAP standard, as well as optional MIFARE systems, which enable granular access control.

The entire control system is ergonomically optimized and capable of swiveling, making it suitable for long periods of concentrated use. At the same time, it offers extensive customization options, such as freely configurable key switches, favorite pages, and user-specific profiles.

KEY FEATURES AT A GLANCE

Three-part panel design

  • Control panel: user login, emergency stop, swivel mechanism, optional safety switch
  • Visualization panel: 21.5" touchscreen display for navigation, settings, and process visualization
  • Manual keypad: the core innovation – haptic, customizable key pairs for precise manual operation


Improved ergonomics

  • Dual-swivel mechanism for optimal positioning
  • Tactile feedback from the key switches for safe operation
  • Designed for frequent changeover operations and long periods of concentrated adjustment work


Advanced customization

  • Customizable soft keys
  • Multiple settings for different operating modes (e.g., robots, core pulls, injection molding processes)
  • Favorites pages and personalized navigation


Modern access technologies

  • RFID login in accordance with the EUROMAP 65 standard
  • Optional: MIFARE system for targeted releases granted by administrators


Multitouch & parallel operation

  • Simultaneous movements and navigation are possible
  • Increases speed and process reliability
