REFERENCES THAT SPEAK FOR THEMSELVES

The markets for HMI and EMS are fast-paced and highly competitive. Technological advancement requires continuous innovation and rethinking. This takes in-depth industry knowledge, customized solutions, as well as bundled development, design, and manufacturing expertise. Thanks to our many years of experience and our broad industry know-how, we are able to think and act in more than one dimension. So you can always be on the safe side with us – from standard to individual solutions. To give you an impression of our work, this page shows you references from the fields of medical technology, vehicles, mechanical and plant engineering, robotics and automation, home automation, control technology, materials handling, telecommunications and textile machines.

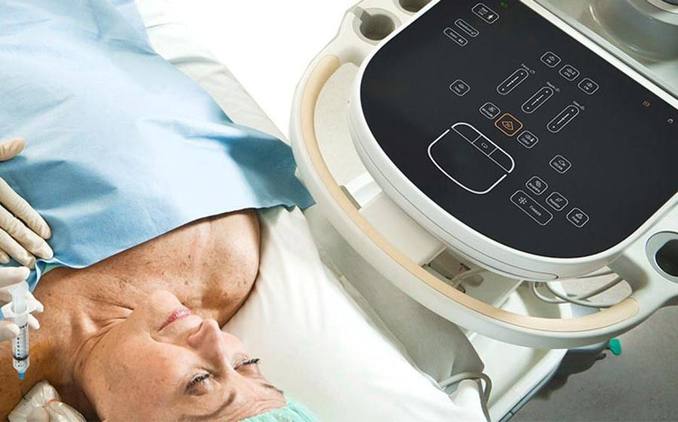

[Translate to Englisch:] RAFI-HMI bei Ultraschallgerät PHILIPS – ULTRASOUND DEVICE

HMI + EMS

Medical product approval involves increasingly stringent requirements regarding safety, easy cleaning, gap-free assembly, and long-term availability. Here, our reliable touchscreen with operating field was able to convince the market leader of its suitability for an innovative ultrasound device.

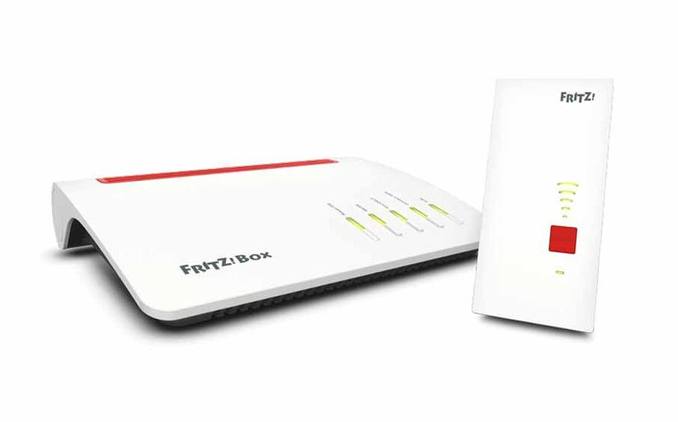

[Translate to Englisch:] AVM Fritz!Box AVM – FRITZ!BOX

EMS

For one of the market leaders in the telecommunication industry, we produce electronic assemblies and devices as a full-service provider. In addition to international procurement of components, we assemble, test, and package the products in-house before dispatch to the end customer. RAFI also takes care of the end-customer service.



[Translate to Englisch:] RAFI-Joystick auf Basis des JOYSCAPE ROUGH für den Pistenbully KÄSSBOHRER – PISTENBULLY

HMI + EMS

RAFI has developed an innovative joystick on the basis of the JOYSCAPE ROUGH that is used in Pistenbully vehicles. The company received the WiR Innovation Award 2017/2018 from the Economic and Innovation Promotion Agency Ravensburg (WiR) for this innovation.

[Translate to Englisch:] Der finnische Traktorenhersteller VALTRA erhielt für seine SmartTouch-Armlehne den Red Dot Design Award 2017. Die Armlehne wurde in Zusammenarbeit mit RAFI entwickelt und wird bei RAFI für VALTRA produziert. Sie ist das Herzstück der neuen S-Serie Traktoren von VALTRA. Entwicklung Design Herstellung Service VALTRA – SMARTTOUCH ARMREST

HMI + EMS

The Finnish tractor manufacturer VALTRA received the Red Dot Design Award 2017 for its SmartTouch armrest. The armrest was developed in cooperation with RAFI and is produced at RAFI for VALTRA. It is a core feature of VALTRA’s new S series tractors.

[Translate to Englisch:] KUKA – SMARTPAD ROBOTERSTEUERUNG KUKA – SMARTPAD ROBOT CONTROL

HMI + EMS

The smartPAD is used to teach and operate the robot. It is connected to the robot via cable for safety reasons. RAFI provided support in the development phase, facilitating its industrialization.

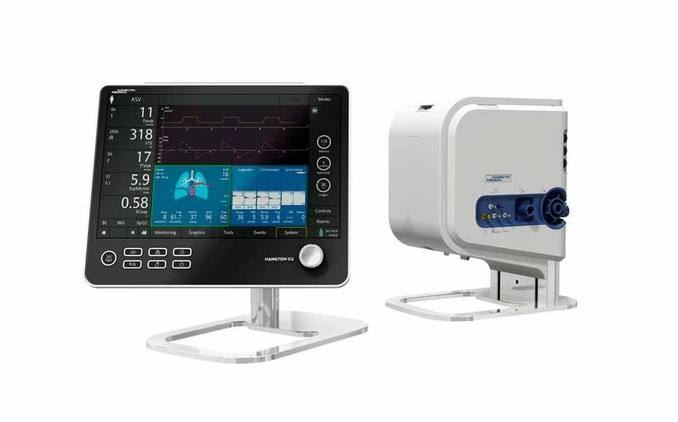

[Translate to Englisch:] RAFI-Expertise in Entwicklung, Design, Herstellung und Service für Beatmungsgeräte von Hamilton Medical HAMILTON MEDICAL – VENTILATOR

HMI + EMS

We are always pleased when our core areas of expertise, EMS and HMI, come into play in the same project. But we are even happier when lives can be saved through our work. We were able to contribute our expertise in development, design, manufacturing, and service to Hamilton Medical’s ventilators.

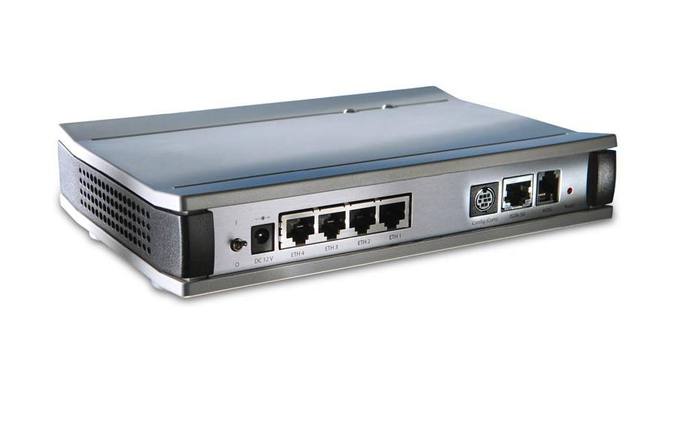

[Translate to Englisch:] RAFI-EMS für Router LANCOM – ROUTER

EMS

Lancom is one of the leading companies for network business solutions. Many of the routers incorporate our entire EMS expertise in terms of production, complete assembly and test equipment development.

[Translate to Englisch:] RAFI-HMI bei Chirurgiegerät ERBE – HIGH-FREQUENCY SURGICAL UNIT

HMI + EMS

The high-frequency surgical unit for cutting and coagulation places the highest demands on the integrated capacitive touch system. That is no problem for RAFI. The touchscreen works reliably in high-frequency environments and impresses with its long-term availability.

[Translate to Englisch:] RAFI-HMI für Beatmungsgerät FRITZ STEPHAN – RESPIRATOR

HMI + EMS

This mobile respirator is used from the accident site through to intensive care. Outdoor use adds extra requirements on top of those for the operating room. Special solutions, including optical bonding, ensure the display remains legible at all times – even under direct sunlight.

[Translate to Englisch:] RAFI-HMI bei Druckmaschinen HEIDELBERGER DRUCKMASCHINEN – PRINTING MACHINE

HMI + EMS

The front bezel for the operation and setup of the printing machine consists of control components, a capacitive touchscreen made in Germany with diagnostics electronics, a display, a USB hub and a coated cover. The customer benefits from complete supply of the 19" touch control system from a single source.

[Translate to Englisch:] RAFI-HMI bei Textilmaschine SAURER.SCHLAFHORST – TEXTILE MACHINE

HMI + EMS

The system uses a yarn monitor to guarantee excellent yarns and piecers. Developing an optical system that detects both the yarn structure and foreign particles was a particular achievement.

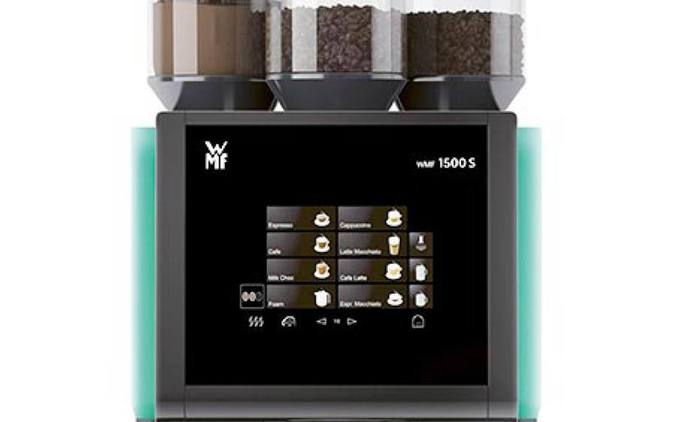

[Translate to Englisch:] RAFI-HMI bei gewerblichen Kaffeemaschinen WMF – COFFEE MACHINE

HMI + EMS

The challenge was to develop a front operating bezel for commercial coffee machines – consisting of key switches, a control panel, a touch unit with electronic diagnostics, a display, controls, customer-specific CPU, and software for the operating system as specified by the customer.

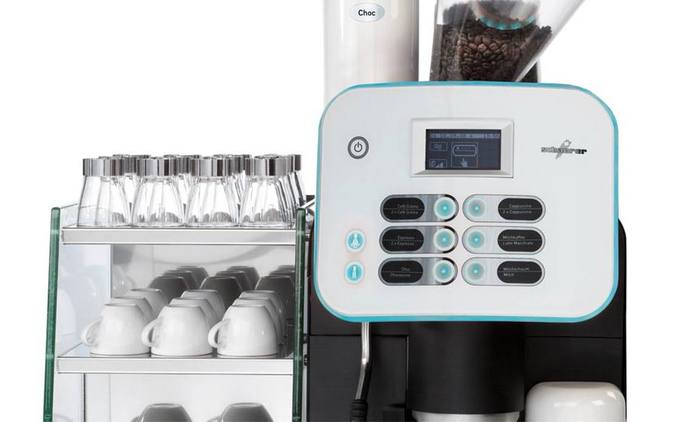

[Translate to Englisch:] RAFI-HMI bei gewerblichen Kaffeemaschinen SCHAERER – COFFEE MACHINE

HMI + EMS

The front operating bezel consists of key switches, a control panel, a curved touch unit with electronic diagnostics, a display, controls, customer-specific CPU, and software for the operating system as specified by the customer. With our in-house touch production and extensive experience in the industry, RAFI was the perfect partner for this project.

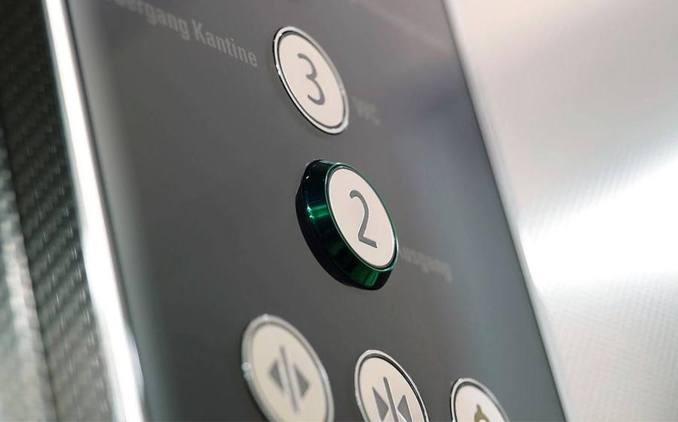

[Translate to Englisch:] RAFI-HMI im Aufzugsbau KONE – ELEVATOR

HMI + EMS

There are several challenges in this industry: modernization, cost, design, digitalization, and, above all, safety. The control system for different elevator lines includes the following units: a control panel with pushbuttons, switches and control components in the elevator; a system to request the elevator, and a floor and direction indicator above the elevator door.

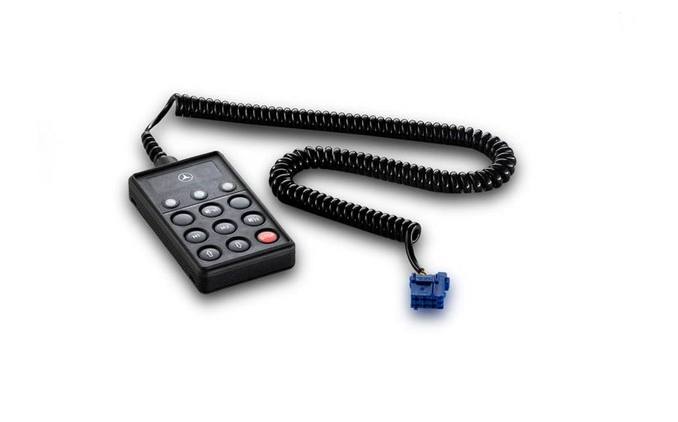

[Translate to Englisch:] RAFI-HMI in Merceses-LKW WABCO – TRUCKS

HMI + EMS

Truck axle controls are used in almost all vehicle brands.

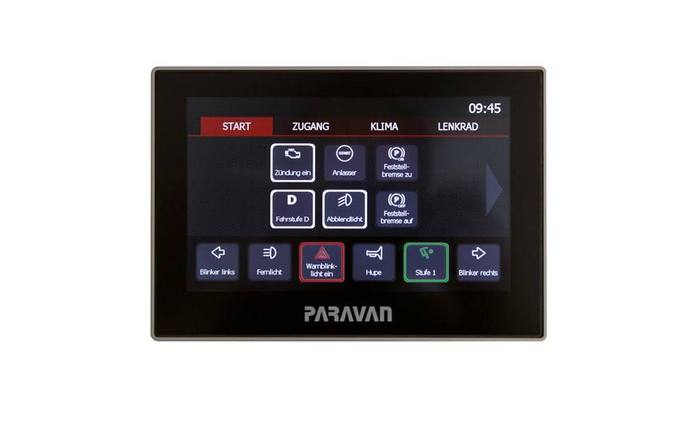

[Translate to Englisch:] RAFI-HMI bei behindertengerechten PKW PARAVAN – CARS FOR PERSONS WITH DISABILITIES

HMI + EMS

Capacitive touch unit. The 7-inch touch unit for control and display in vehicles for persons with disabilities is automotive-compliant. It can withstand temperatures of -40 °C to 85 °C and has been awarded E1 certification.

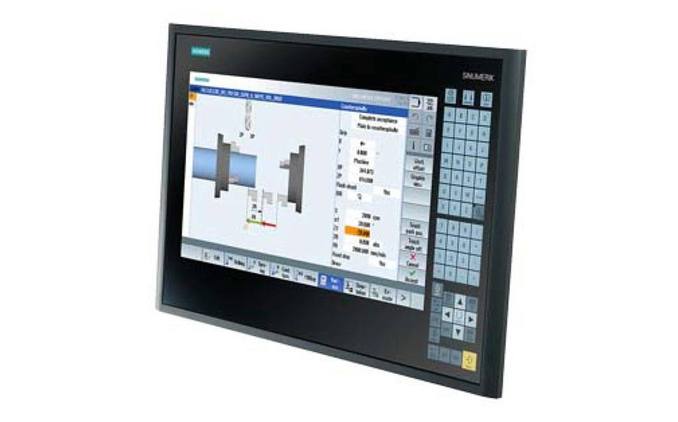

[Translate to Englisch:] RAFI-HMI und EMS in der Automatisierung SIEMENS – AUTOMATION

HMI + EMS

The 15.4" multifunction touchscreen with a RAFI glass sensor and 14 x 14 mm alphanumeric PCAP touch keyboard can be operated while wearing gloves. In addition, the industrial-grade IP66 glass front is rugged, durable, non-reflective, and resistant to various aggressive media.

[Translate to Englisch:] RAFI-HMI bei Ladenbackofen WIESHEU – IN-STORE OVEN

HMI + EMS

The system consists of a GLASSCAPE touchscreen with display and customer-specific electronics. The special challenge is achieving reliable media resistance against various foods, such as jelly, butter, or flour. In addition, smooth operation must also be ensured, even when wearing gloves.

[Translate to Englisch:] RAFI-HMI bei Gabelstapler von Kion KION – FORKLIFT TRUCKS

HMI + EMS

The control panel for a high-bay forklift order picker is equipped with a steering wheel, indicator display, RAFI emergency power off, and two RAFI joysticks for controlling the lifting and lowering of the fork and the direction of travel.

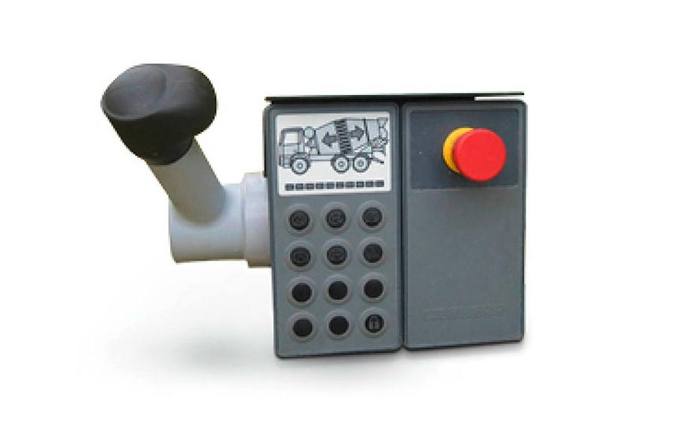

[Translate to Englisch:] RAFI-HMI und EMS bei Fahrmischern LIEBHERR – TRUCK MIXER

HMI + EMS

A rugged control panel for concrete mixing drum control in outdoor use. The PCB with electronics, tactile switches, emergency power off, hall-based operating lever, and back-printed overlay – installed in a rugged 2K housing – easily meets the heavy-duty requirements.

[Translate to Englisch:] RAFI-HMI und EMS bei Räumfahrzeugen AEBI – SNOWPLOUGHS/GRITTERS

HMI + EMS

The RAFI system controls the plough blade, the grit distribution unit, and the sprayer. It consists of a capacitive touchscreen, mechanical input and output units, RAFI joystick, and RAFI short-travel keyboard on a back-printed and therefore hardwearing overlay.

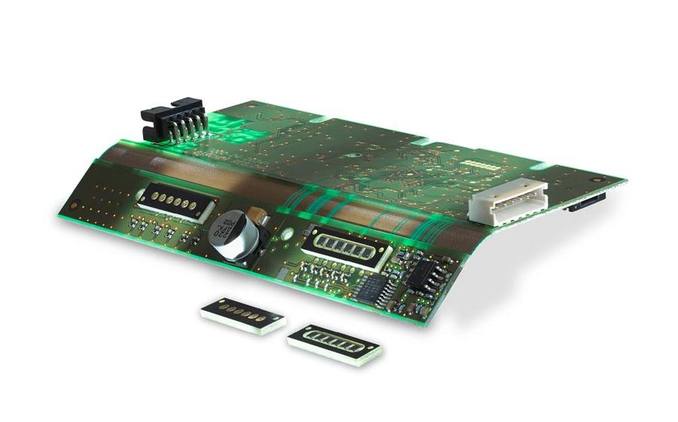

[Translate to Englisch:] RAFI-EMS bei Automatiktüren AUTOMATIC DOORS

EMS

People only really notice automatic doors when they stop working. That is why the reliability of the sensor technology was the deciding factor in this project. RAFI produces chip-on-board modules with optical grouting, assembles the modules onto semiflex PCBs, and solders components using a low-temperature process.

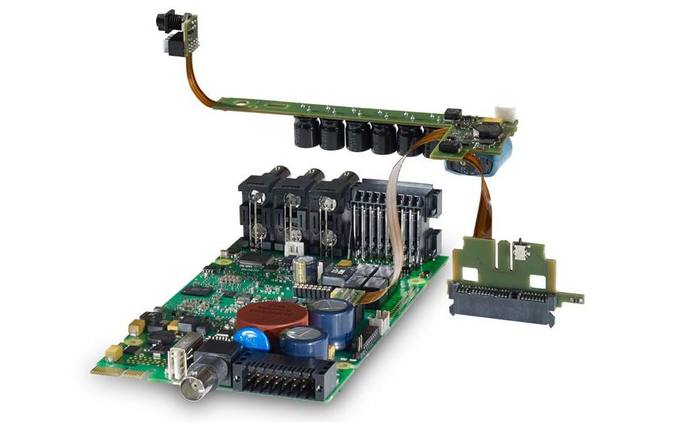

[Translate to Englisch:] RAFI-EMS für Smart Home DRESEARCH – flexible-rigid assemblies

EMS

DResearch is a German hardware and software specialist. When it comes to rigid-flexible-rigid assemblies, the company from Berlin trusts in RAFI’s expertise.

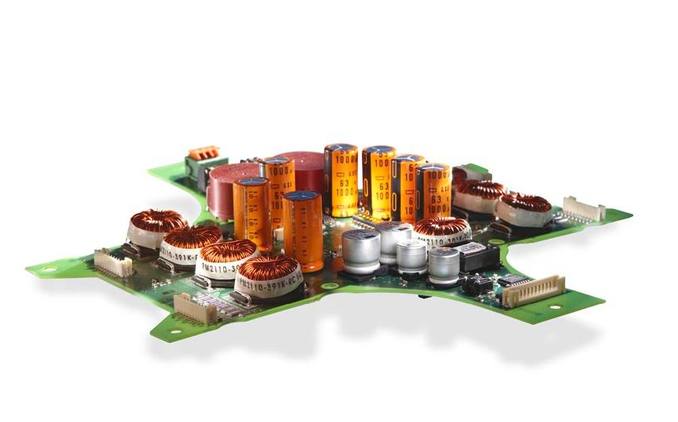

[Translate to Englisch:] RAFI-EMS in medizinischen Geräten LED – SURGICAL LIGHTS

EMS

RAFI produces complex electronic assemblies for leading manufacturers of medical devices.

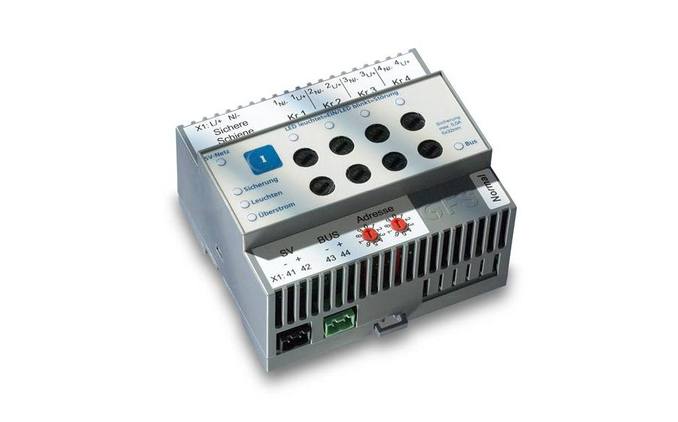

[Translate to Englisch:] RAFI-EMS in Sicherungssystemen GFS – SECURITY SYSTEMS

EMS

For decades, GFS has been setting standards in security technology – for example with escape route security systems. We contribute to the company’s success with our expertise in 3D assembly.

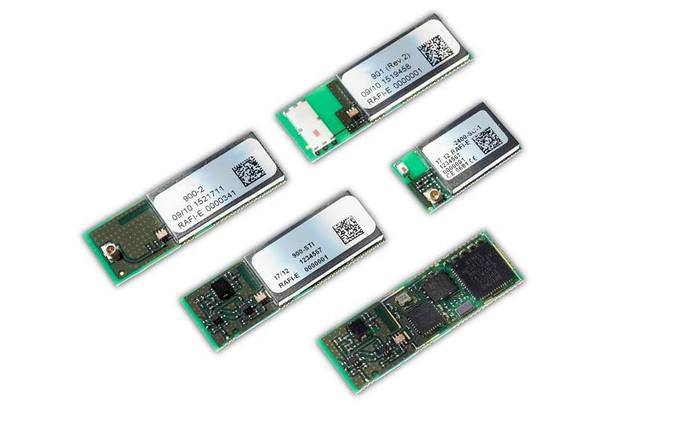

[Translate to Englisch:] RAFI-EMS bei Funkmodulen WIRELESS MODULES

EMS

RAFI carries out high-volume manufacturing of the highly integrated radio module models 0201 and FinePitch-QFN. SMD assembly and screening are integrated in a single soldering process. The PCB contour is designed with perforated contour tabs.

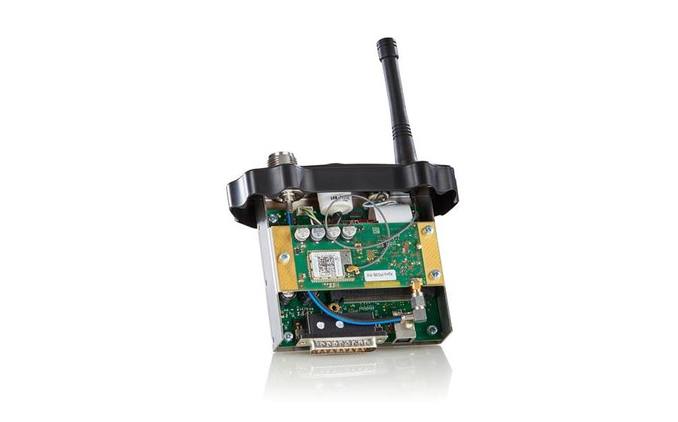

[Translate to Englisch:] RAFI-EMS bei WLAN-Applikation WLAN AUDIO APPLICATION

EMS

The WLAN application transmits sound in studio quality without any compression and over distances that have never previously been reached. This makes it the perfect solution for live events.

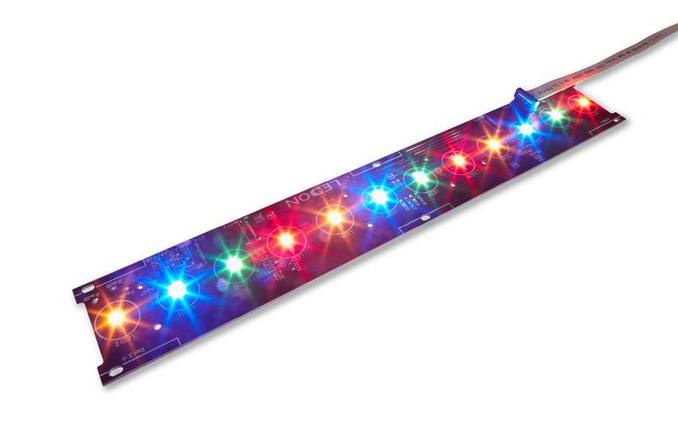

[Translate to Englisch:] RAFI-EMS bei LED-Technologie LED TECHNOLOGY

EMS

We have been working on the illumination technology of the future for quite some time. Already, we have developed and series-produced various power LED applications and high-grade aluminum PCBs. In addition, RAFI makes it easier to use the LEDs through fine binning.

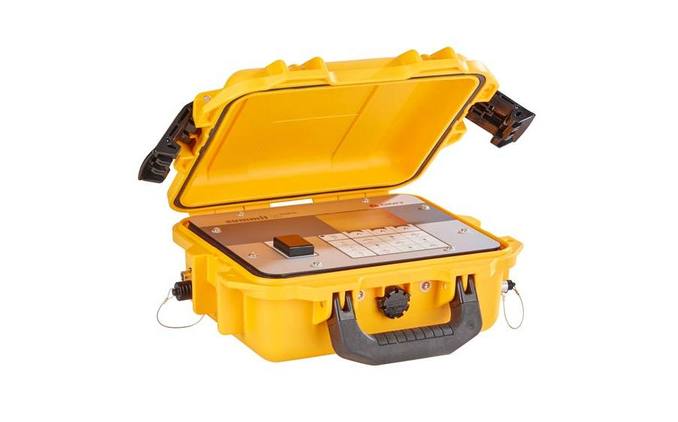

[Translate to Englisch:] RAFI-EMS bei Schwingungsüberwachungssystem VIBRATION MONITORING SYSTEM

EMS

This system is a three-channel seismograph for vibration monitoring with an additional channel for noise monitoring. The units can be interconnected to establish surveillance networks. The system offers structural vibration monitoring according to all established standards. It also features integrated continuous and results-based imaging.

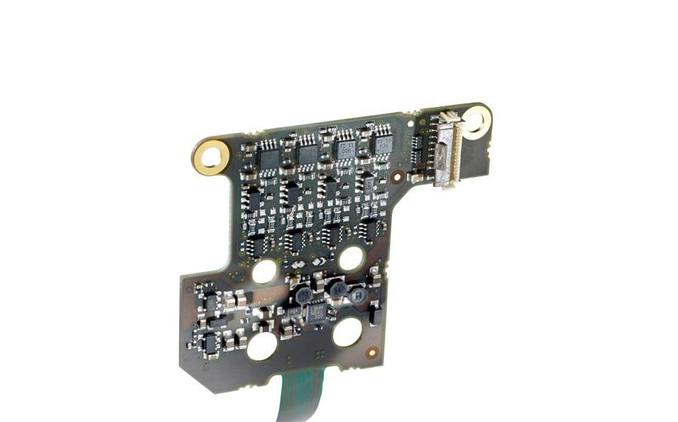

[Translate to Englisch:] RAFI-EMS bei Lasermesssystem LASER MEASUREMENT SYSTEM

EMS

Laser measurement systems are known for their precision. To make sure it stays that way, RAFI supplies Flex PCBs for laser measurement systems.

[Translate to Englisch:] RAFI bei Sanitaerprodukten SANITARY PRODUCTS

EMS

The European market leader for sanitary products trusts in RAFI expertise. Here we implement the combination of three different PCB technologies (Rogers, FR4 and Flex PCB), complex geometry (3D electronics), and radar technology based on 24 GHz, and integrate them into existing systems.

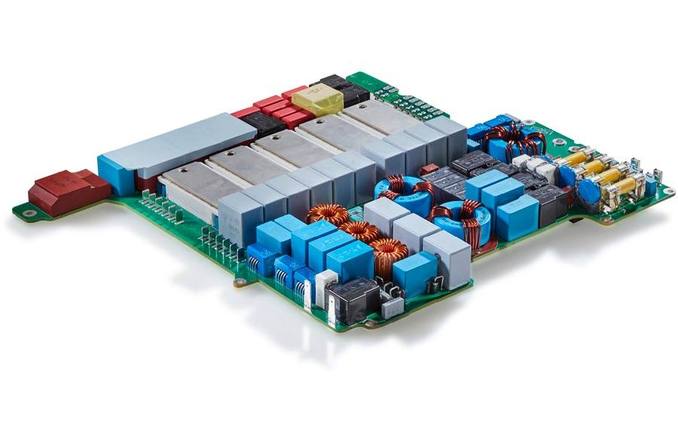

[Translate to Englisch:] BRUSA – ELEKTROMOBILITÄT BRUSA – E-MOBILITY

EMS

BRUSA Elektronik AG focuses on applications in the field of e-mobility. We support this Swiss company with SMD, THT, and test solutions for loading technology, DC converters, and drives.
