High-frequency surgical device

THE HIGHEST STANDARDS IN DESIGN AND FUNCTIONALITY
  1. Home
  2. Ι INDUSTRIES
  3. Ι MEDTECH

The HMI for the premium HF surgical device combines an elegant design with maximum functionality and ease of cleaning.

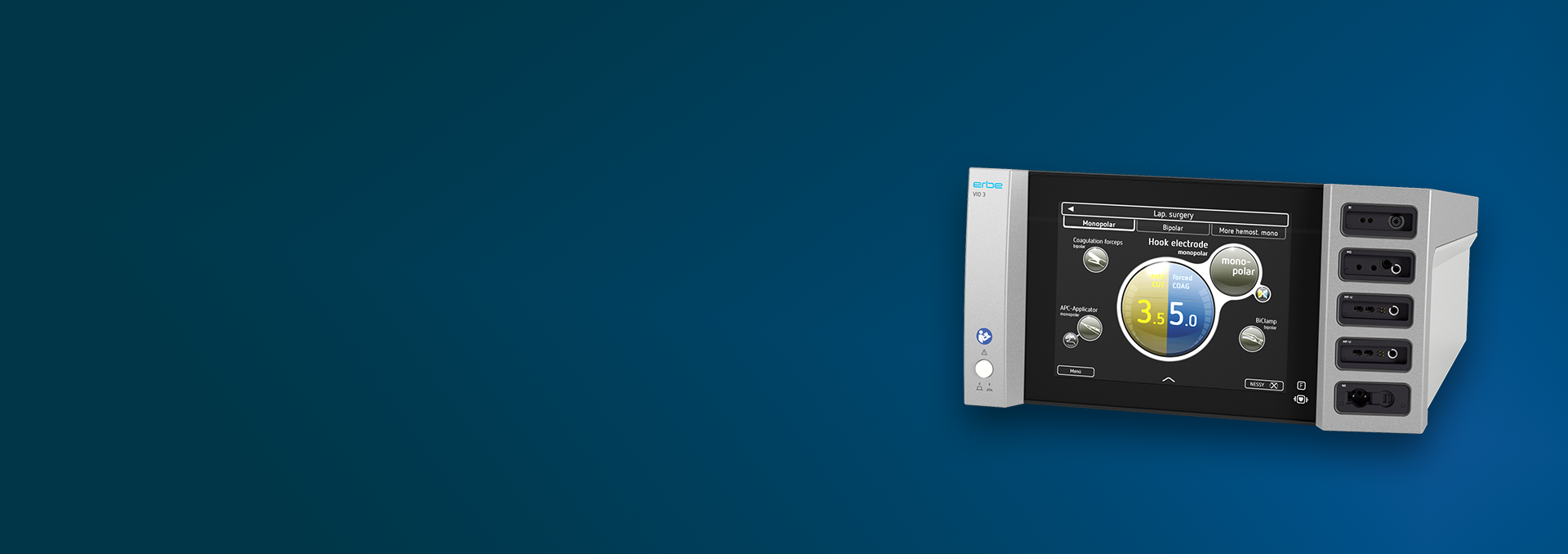

  • Product: VIO3 – electrosurgical generators
  • Industry: Medical technology
  • Function: High-frequency surgical device (high-end)

SCOPE OF SERVICE

The HMI system for the VIO3 was developed through close collaboration between Erbe and RAFI. RAFI handled the entire industrial value chain: from the mechanical components to the integration of RAFI’s proprietary capacitive RAFI Glassscape technology (with its own touch electronics on a plug-in module) to the baseboard with the core module.

Ensuring that the capacitive unit operates without interference, even when it comes into contact with a high-frequency cutting unit, places the highest demands on the calibration of the touchscreen and the shielding of the entire unit.

The assembly of all mechanical and electronic components, as well as a final inspection for functionality, appearance, and finish, rounds out the service package.

KEY FEATURES AT A GLANCE

High-quality craftsmanship & functional design

  • Electronics: extremely fast boot time and quick software updates via Ethernet or Wi-Fi
  • Capacitive multitouch display: 10.4-inch display with an ultra-wide viewing angle for optimal visibility from virtually any position
  • Shielding: overall design specifically engineered to withstand high-frequency interference
  • Suitable for medical sterilization: despite the semi-open frame design, a tightly sealed system with carefully selected surface materials enables safe and frequent disinfection and cleaning procedures



User-friendly operation in all surgical settings

  • Intuitive touch navigation: optimized control via preset modes and the intuitive user interface
  • Compact design: ideal for use in outpatient settings
  • Ergonomically optimized operation: designed for ease of use with surgical gloves
