Ventilator

THE HIGHEST STANDARDS IN DESIGN AND FUNCTIONALITY
  1. Home
  2. Ι INDUSTRIES
  3. Ι MEDTECH

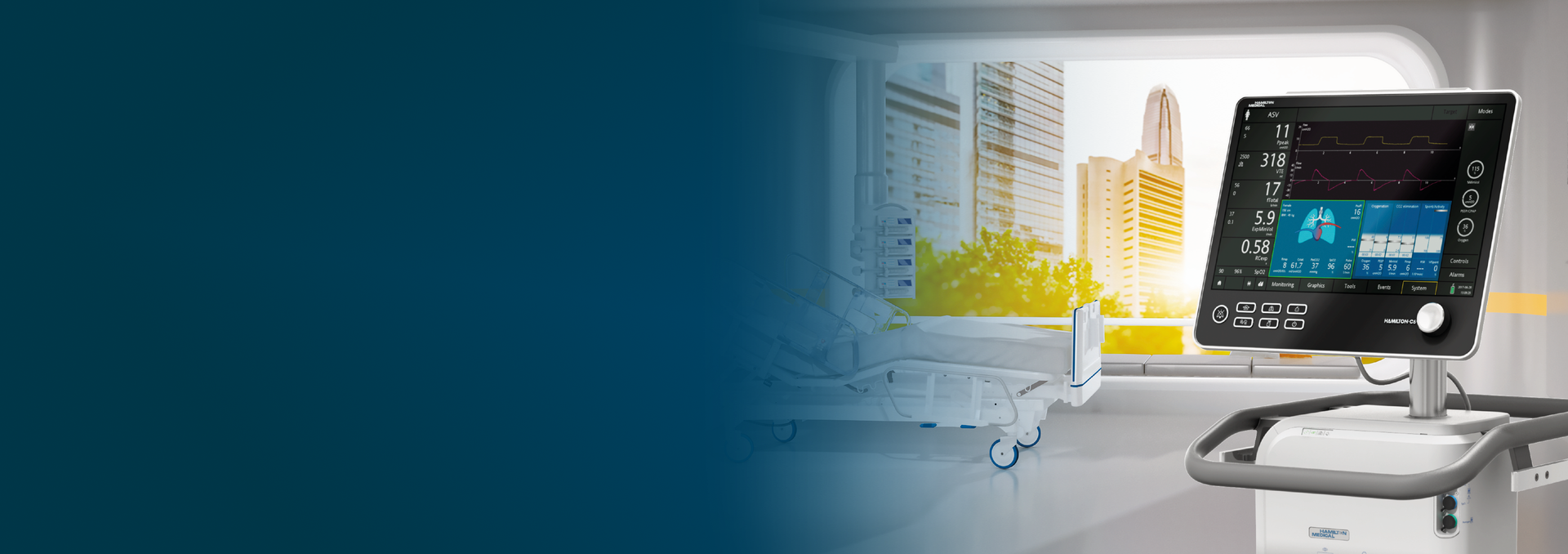

The HMI for the premium ventilator combines aesthetically pleasing, seamless design with maximum functionality and straightforward cleaning. A seamless, easy-to-clean glass and aluminum surface, a sturdy metal frame that provides all-around impact resistance, and an elegantly integrated alarm bar meet the highest aesthetic and technical standards.

  • Product: Intensive Care Ventilator
  • Industry: Medical technology
  • Function: Ventilator

SCOPE OF SERVICE

The innovative HMI system was developed in close collaboration between the customer and RAFI. RAFI handled the entire manufacturing process, from PCB assembly to glass processing and printing, including the integration of the capacitive touch sensor and alarm light.

The aluminum frame, milled from a solid block, is encapsulated with the glass components precisely at this critical interface to achieve maximum durability and visual cohesion. The assembly of all mechanical and electronic components, as well as a final test for functionality, appearance, and cosmetic quality, rounds out the service package.

The project highlights RAFI’s high degree of in-house production: electronics, optics, materials processing, and mechanical integration all come together here in a sophisticated medical device.

KEY FEATURES AT A GLANCE

High-quality craftsmanship & functional design

  • Glass-aluminum construction: Seamless, easy-to-clean surface design for maximum hygiene in intensive care units
  • Capacitive multitouch display: 17-inch display with an ultra-wide viewing angle for optimal visibility from virtually any position
  • Gap-free design and impact protection: Frame machined from a solid aluminum block with fully sealed gaps for maximum impact resistance and protection of electronic components
  • Sterilizability for medical technology: A seamless design and carefully selected surface materials enable safe and frequent disinfection and cleaning procedures



User-friendliness in emergency situations

  • Intuitive touch navigation: Quick access to ventilation modes and patient parameters during critical moments
  • Color-coded alarm indicator: Integrated LED alarm bar for immediate visual status feedback
  • Ergonomically optimized operation: Swivel-mounted and designed for long periods of concentrated use in intensive care units
  • Multilingual user interface: Support for global clinical workflows
