RAFIX

FLEXIBLE AND RELIABLE
  1. Home
  2. Ι HMI
  3. Ι Solutions
  4. Ι Control and signaling components
  5. Ι RAFIX

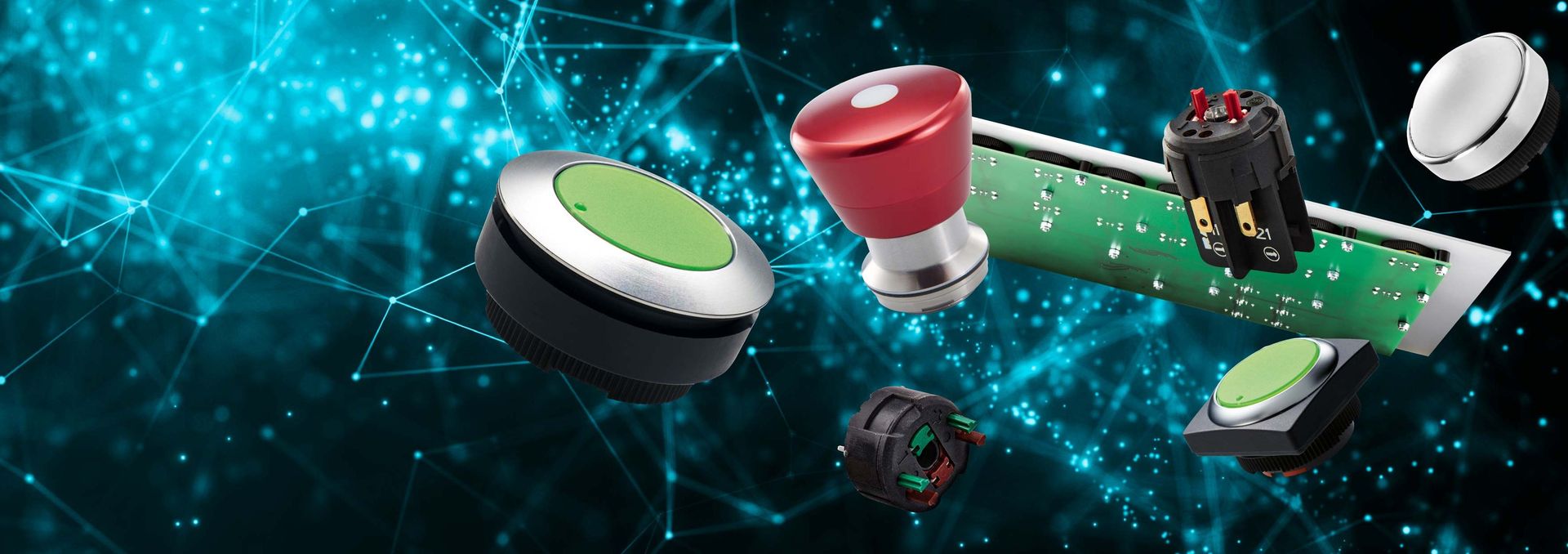

All RAFIX series come in modular design. They consist of one actuator and one switching element. You benefit because you only need to store the individual parts and can combine them as you wish. This gives you almost unlimited combination options for production and final assembly. You can create all the variations you require. However, if you want more, we can offer you a custom solution. Basically, the differences between the RAFIX series consist of the mounting depth, terminal types, and mounting holes from 16.2 mm to 30.3 mm.

[Translate to Englisch:] Die RAFIX-Befehlsgeräte von RAFI sind flexibel und zuverlässig

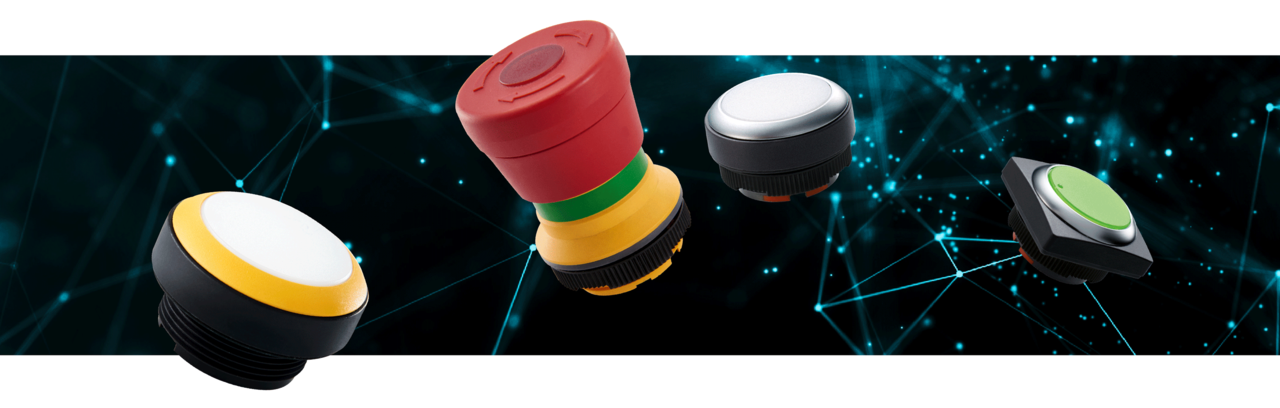

RAFIX 22 FS+

CONTROL COMPONENTS

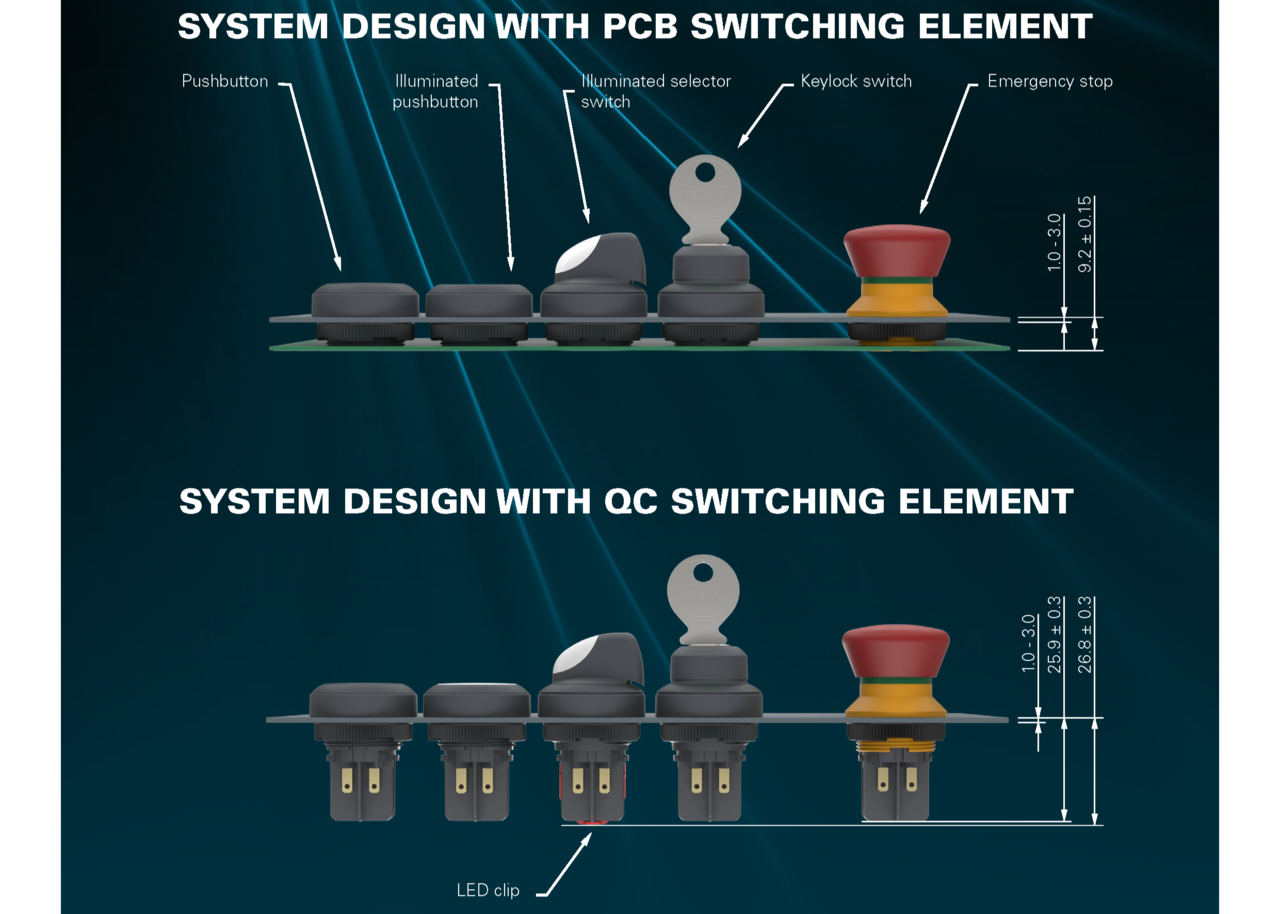

The RAFIX 22 FScontrol component series is distinguished by its diversity and modularity – with virtually unlimited combination and individualization options. Different actuators and indicators ensure ideal operation of your machine or device. A modern and variable design concept enables you to individually adapt the control components to your system. Simply select bezels and front rings to match your corporate colors. This boosts brand recognition and the exclusivity of your products. All actuating elements in this series can be combined with FS technology switching elements.

  • Special tactile feedback
  • Ideal for operation with gloves
  • The FS technology PCB switching elements minimize assembly errors
  • The short-travel adapter also allows short switching travel for pushbuttons with normally open contacts. This is where our MICON 5 is ideal.
  • FLEXLAB technology for easy and custom pushbutton legending
  • Design adaptation with different front ring variations
  • Protection rating: IP65 to the front side
  • Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
  • Terminal types: PCB terminal, quick-connect terminal
  • Approvals: TÜV, UL, CCC, VDE
Download brochure
[Translate to Englisch:] Die Befehlsgeräte RAFIX 22 FS+ von RAFI zeichnen sich durch ihre Vielfalt und Modularität aus

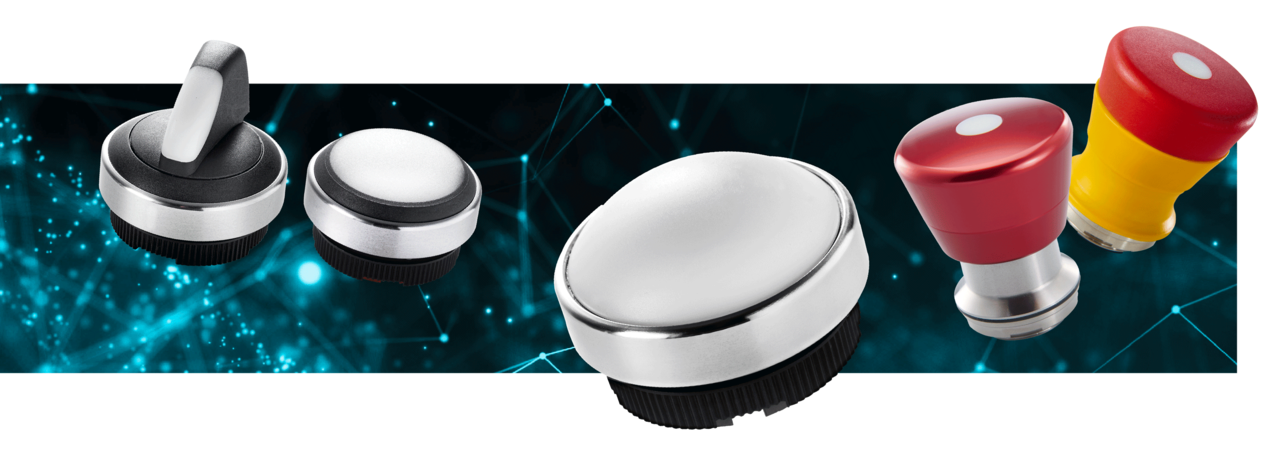

RAFIX 22 FSR

ACTUATING ELEMENTS

Dust, dirt, lubricants, moisture, heat, and freezing temperatures: special solutions are required for tough conditions. RAFIX 22 FSR meets the challenges – a series specially developed for your applications wherever things can get tough. Adverse conditions reveal how far actuators and switching elements can go: durability, cost-effectiveness, and know-how, based on proven FS technology. RAFIX 22 FSR stands up to tough conditions. The low mounting depth of the switching elements is space-saving and enables quick assembly. The interchangeable colors and designs of the key switches and actuators provide effective orientation and clear recognition. The actuating elements are combined with FS technology switching elements.

  • Moisture resistant, rugged, resistant to extreme temperatures
  • Dirt and dust resistant
  • Mounting depth of 9.2 mm (PCB) or 27 mm (QC)
  • Top-quality stainless steel for increased stability and durability
  • Protection classes: up to IP69
  • Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
  • Terminal types: PCB terminal, quick-connect terminal
  • Approvals: TÜV, UL, CCC, VDE
Download brochure
[Translate to Englisch:] Die RAFIX 30 FS+ Befehlsgeräte sind optisch ein Hingucker und glänzen mit den bewährten Vorzügen der FS-Technologie.

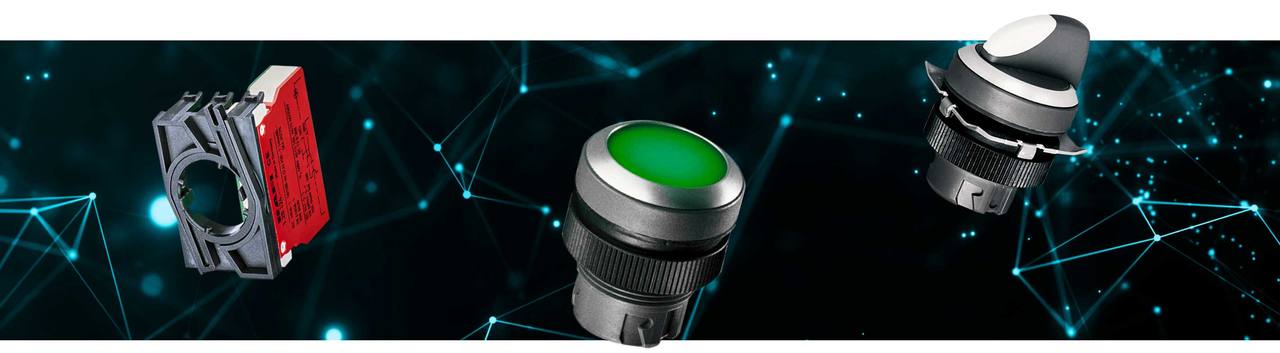

RAFIX 30 FS+

CONTROL COMPONENTS

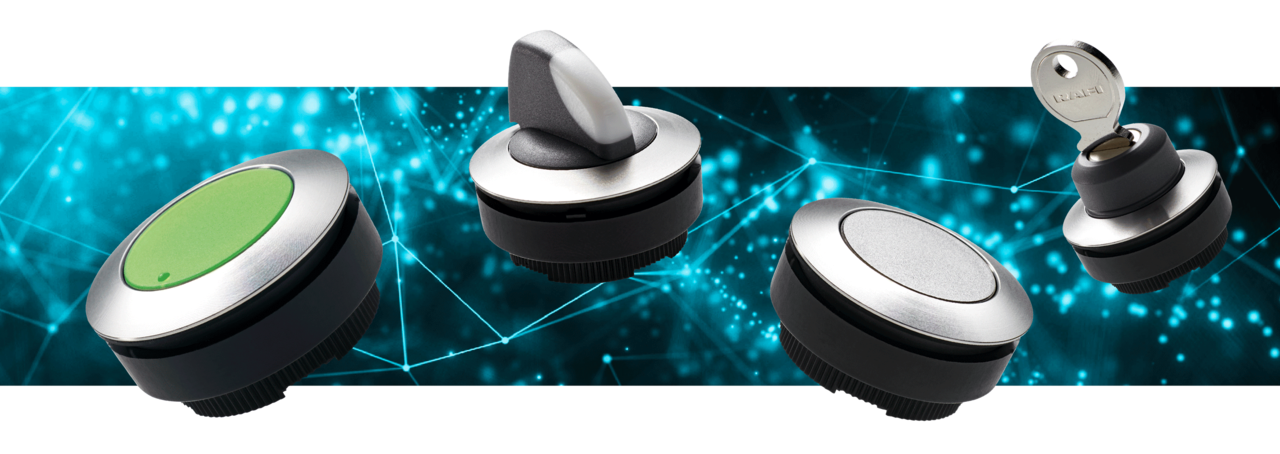

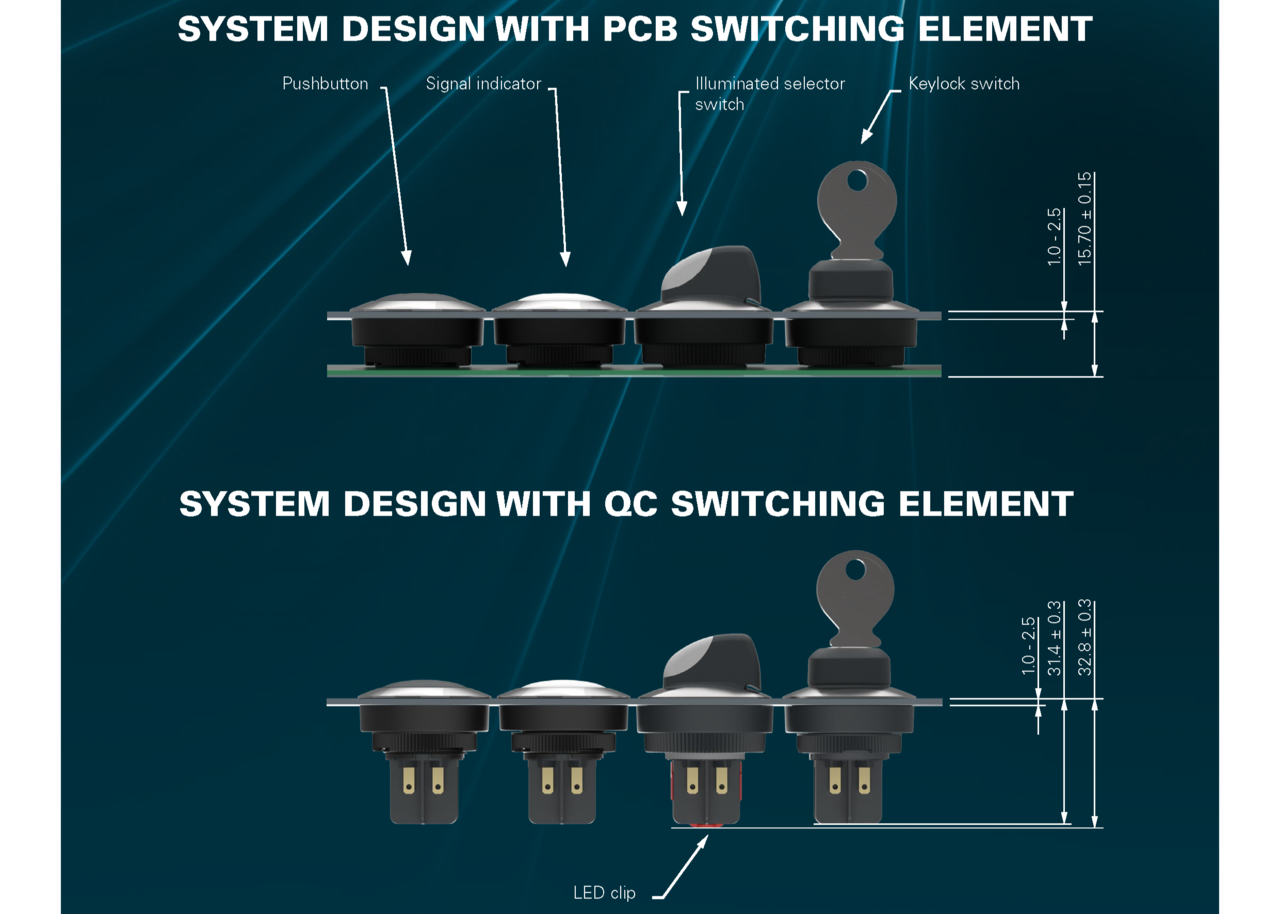

RAFIX 30 FS+ control components are real eye-catchers and stand out with the proven advantages of FS technology. With the two switching element versions “Quick Connect” (QC) and printed circuit board assembly (PCB), you can achieve flat housing designs. This makes RAFIX 30 FS+ the low-profile alternative with high design standards. The applications are just as versatile as all other RAFIX series. RAFIX 30 FS+ is mainly used in automation technology, particularly where design and appearance have a high priority. The actuating elements are combined with FS technology switching elements.

  • Special tactile feedback
  • Ideal for operation with gloves
  • The FS technology PCB switching elements minimize assembly errors
  • The short-travel adapter also allows short switching travel for pushbuttons with normally open contacts. This is where our MICON 5 is ideal.
  • FLEXLAB technology for easy and custom pushbutton legending
  • Protection class: IP65
  • Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
  • Terminal types: PCB terminal, quick-connect terminal
  • Approvals: TÜV, UL, CCC, VDE
Download brochure
[Translate to Englisch:] Die innovative FS-Schaltelement-Technologie setzt Maßstäbe in der Welt der Befehlsgeräte

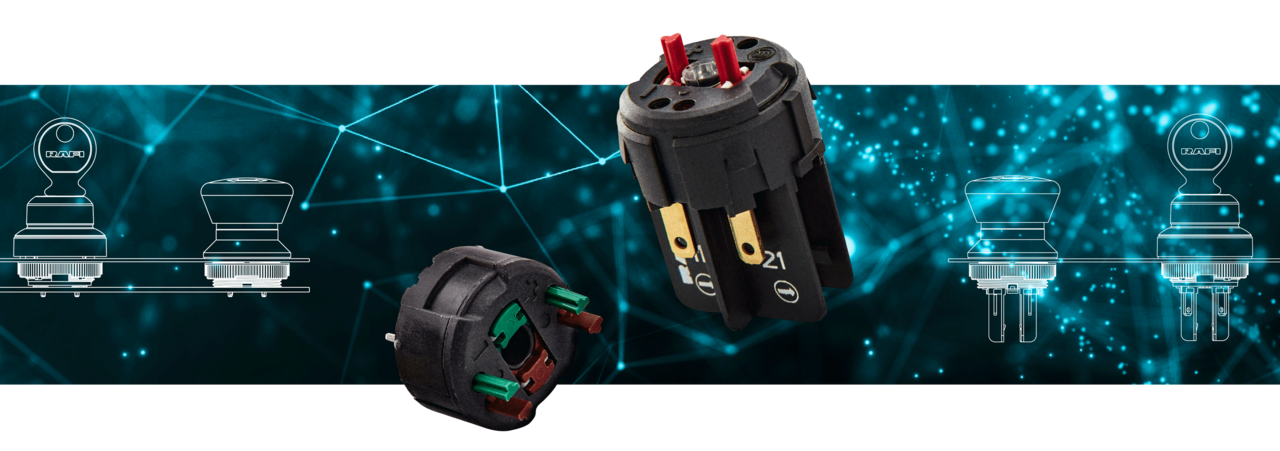

FS-Technologie

Fast & Slim

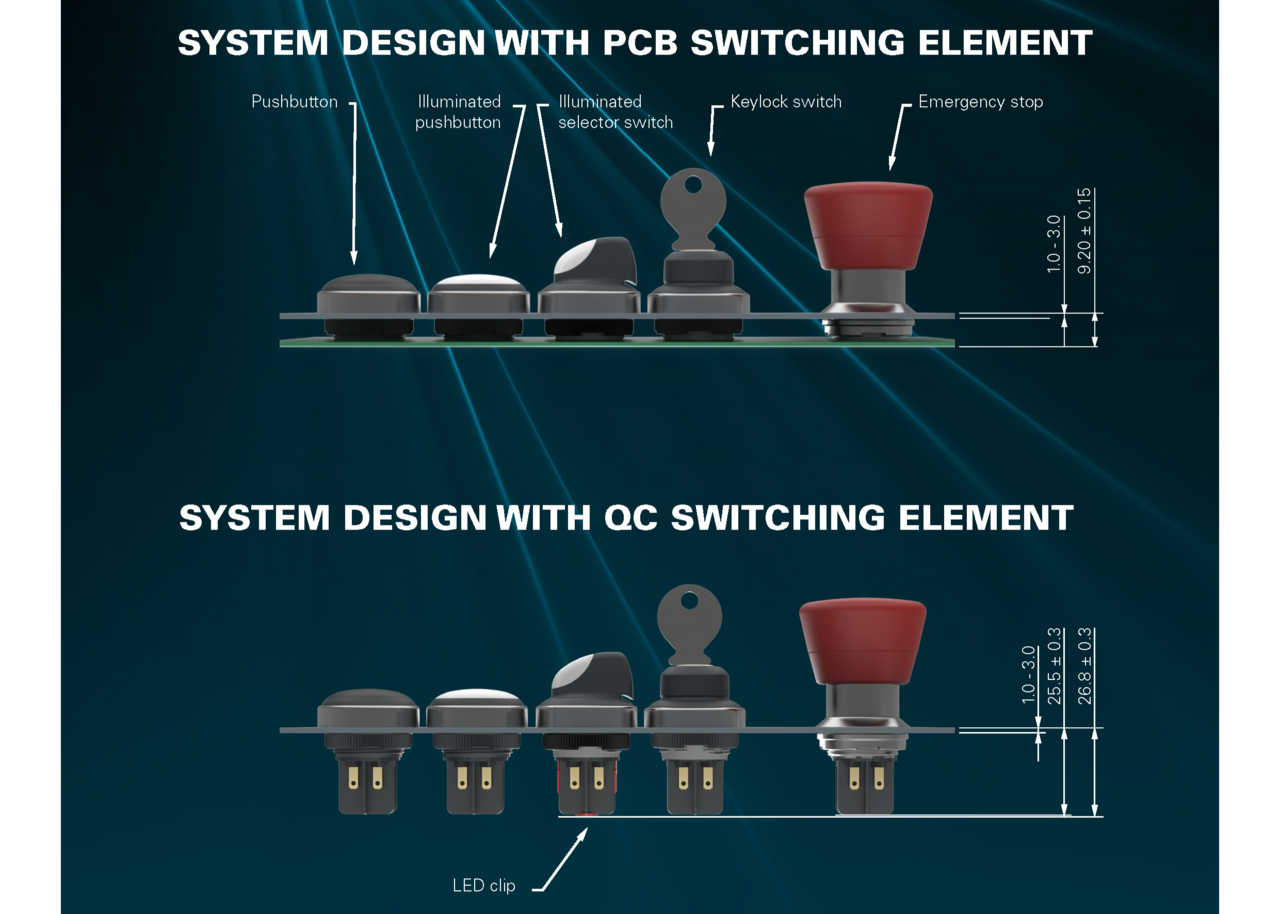

The innovative switching element technology sets a new benchmark in the world of control components. The versatile assembly concept makes the RAFIX 22 FS+, RAFIX 22 FSR, and RAFIX 30 FS+ series cost-effective solutions. The system configuration is both flexible and modular. You can combine each FS technology switching element with any actuator in the three series. We distinguish between two assembly options.

[Translate to Englisch:] Die geringe Einbautiefe der Leiterplattenmontage PCB erlaubt es, Befehlsgeräte in flachen Systemen zu integrieren
FS TECHNOLOGY

PCB ASSEMBLY

The low mounting depth enables control component integration in low profile systems. This concept saves you space, labor, and material. It also virtually prevents assembly errors, as the circuit diagram is integrated in the design of the printed circuit board. In addition, beautiful, low profile control panels can be realized that not only meet the functional requirements, but also stand out visually.

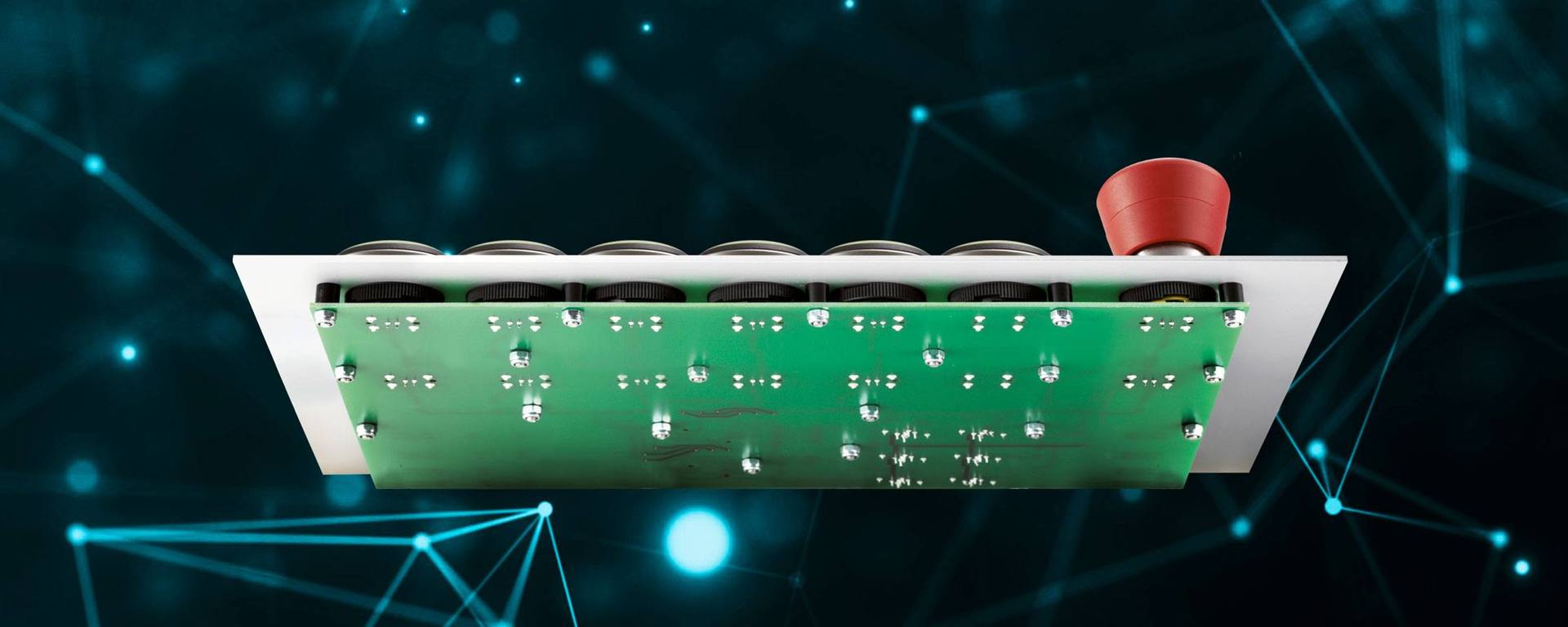

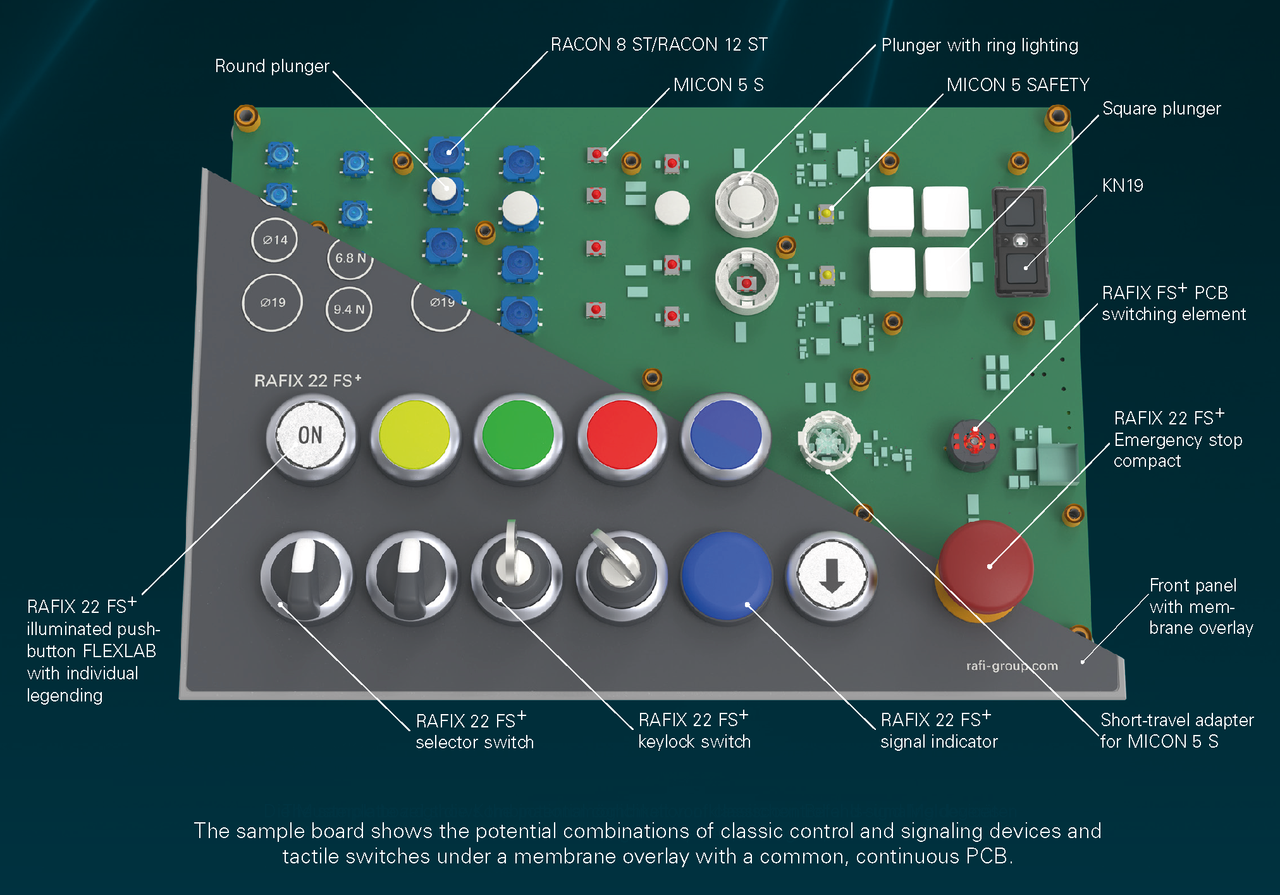

The FS switching elements are arranged with other components on a printed circuit board. This is subsequently mounted behind the front panel together with the actuators and signal lamps. The switching elements “float” under the actuators on the PCB behind the front panel. You can place SMT LEDs on the PCB directly underneath the switching elements to illuminate the actuators.

  • Mounting depth RAFIX 22 FS+ and RAFIX 22 FSR: 9.2 mm
  • Mounting depth RAFIX 30 FS+: 15.8 mm
[Translate to Englisch:] Das QC-Prinzip ist die praktische Alternative für Anwendungen, bei denen die Realisierung einer Leiterplatte nicht lohnenswert ist

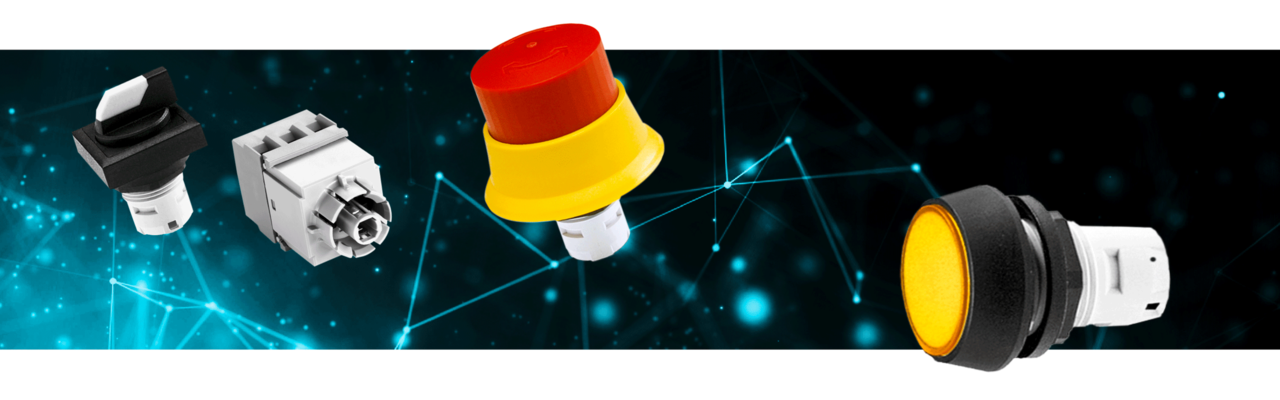

FS TECHNOLOGY

QC QUICK CONNECT TERMINAL

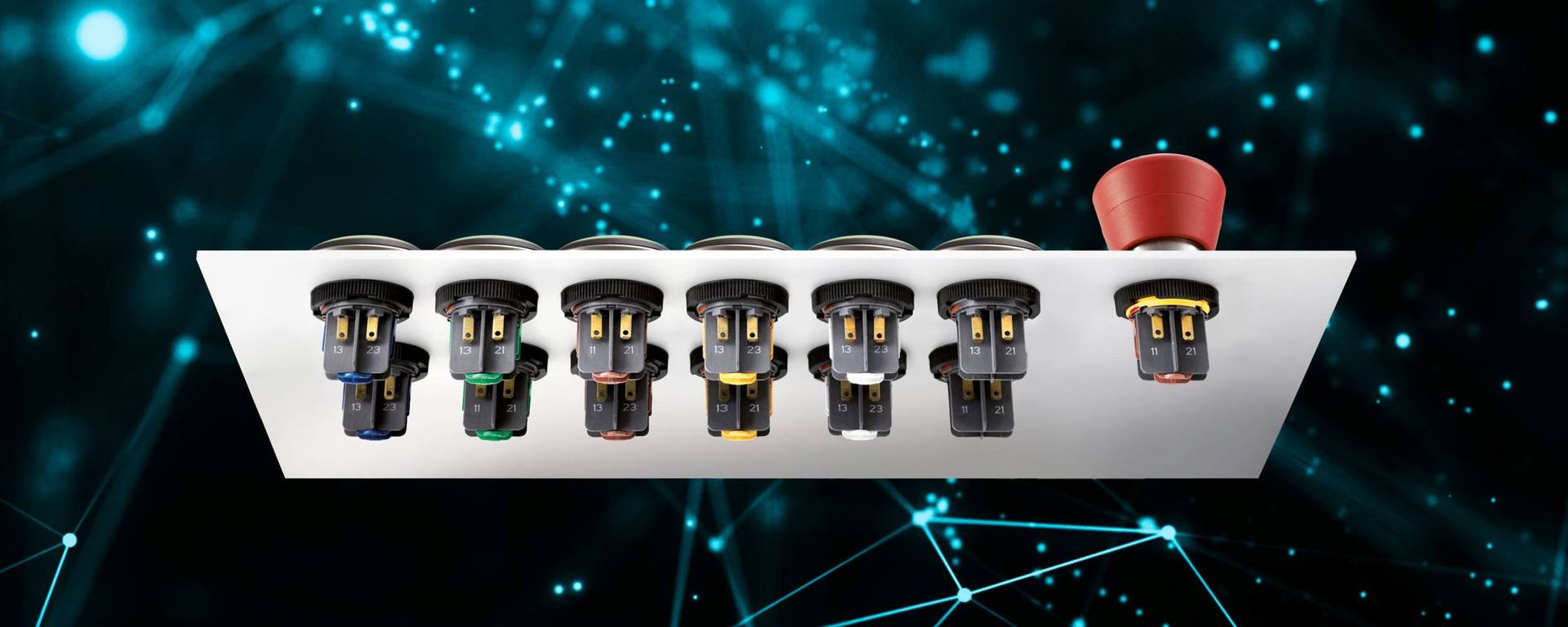

The QC concept is the practical alternative for applications where a PCB layout is not economically viable. You can manually wire the switching elements using common flat quick-connect terminals (2.8 x 0.8 mm). LED clips that can be used individually in the colors of your choice evenly illuminate the actuators.

A low mounting depth is not the only thing that distinguishes the QC switching elements from conventional control components: They also do not require coupling elements between the actuator and switching element. One light click is sufficient and both elements are inseparably connected to each other. As a result, they can be used in environments with high vibrations and shocks. Complete, tool-free assembly can also be carried out away from the operating stands.

  • Mounting depth RAFIX 22 FS+ and RAFIX 22 FSR: 26.8 mm
  • Mounting depth RAFIX 30 FS+: 32.8 mm
RAFIX Control components from RAFI
