Linear Joystick

INTUITIVE LINEAR OPERATION FOR MAXIMUM PRECISION AND SAFETY
  1. Home
  2. Ι HMI
  3. Ι HMI Platforms

Compact joystick for ergonomic finger operation

The compact linear joystick delivers precise performance thanks to modern 3D Hall sensors and integrated capacitive hand detection for maximum operational reliability. The illuminated, ergonomically designed handle concept ensures fast, intuitive and safe operation even under demanding conditions. With optional SENT signal and robust industrial design, it is ready for high-performance, future-proof system solutions.

TECHNOLOGY HIGHLIGHTS
  • Installation size/flange 25 x 43 mm
  • Orthogonal deflection 35° in each case
  • Gates Linear, momentary contact function, latching
  • Sensor system Hall sensors: Wear-free, contactless
  • Interfaces Analog / SENT
  • Operating torque Depends on sctuator spring, falding bellows, bearing shell (locking/preferred guidance)
    0,05-0,1Nm linear range
    0,1-0,2Nm detent function
  • Shock resistance 100N
  • Operating life Under climatic influence (-40 °C to +85 °C)
    Lineare deflection: 1,5 million cycles
    Detent function: 1 millon cycles
  • Temperature range -40 °C to +85 °C
  • IP degree of protection IP54

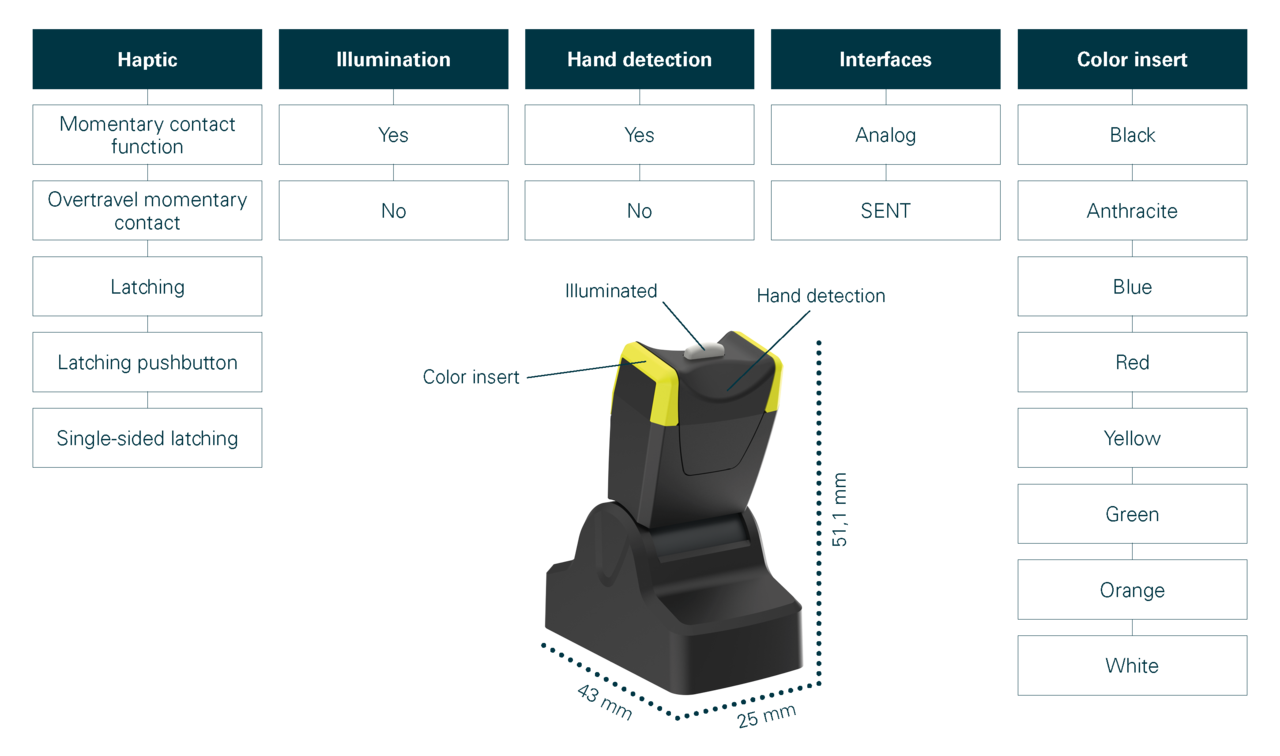

VARIATIONS

Download Onepager

Get all the relevant details and options at a glance in our Linear Joystick onepager.

Download
Online catalogue

You can find all technical specifications and various models in our online catalogue.

ecatalog
